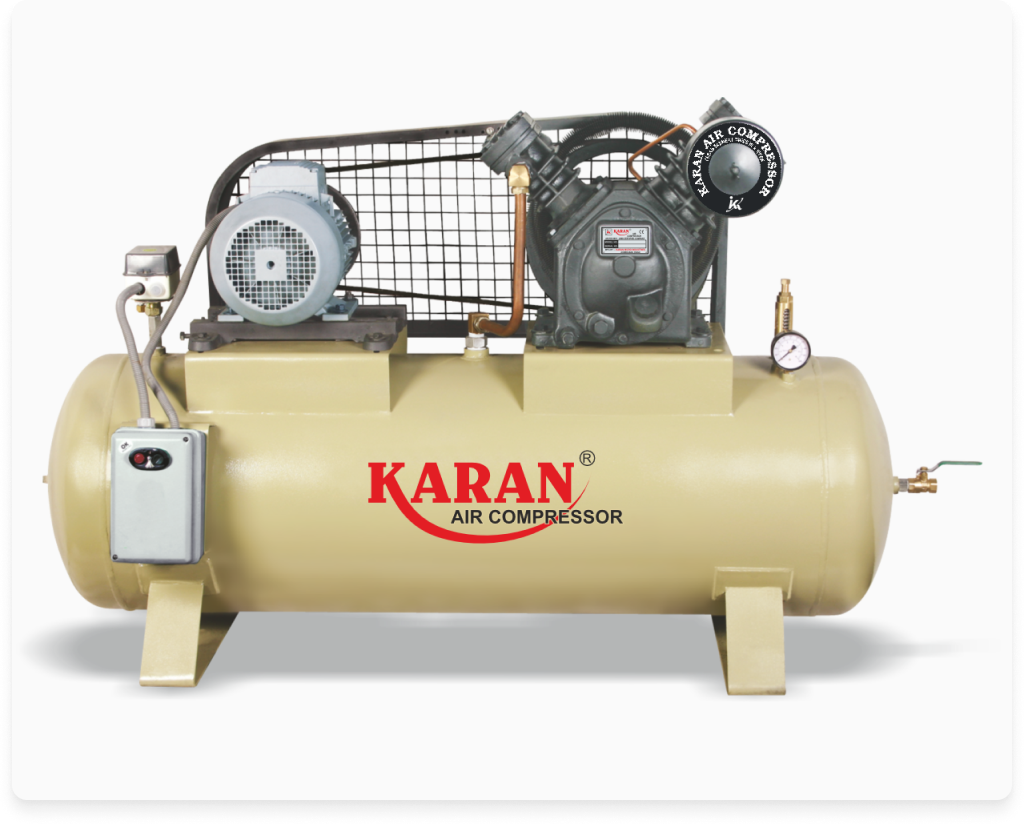

Single Stage Reciprocating Compressor
ISO 9001:2015
Our single-stage reciprocating air compressors are built for workshops, service centres, and light industrial use. The robust piston design delivers reliable performance for pneumatic tools, spray painting, and general manufacturing applications with minimal maintenance requirements.
//
Technical Specifications
Working Pressure2–10 BAR
Free Air Delivery3.76–100 CFM
Motor Power1–15 HP
StagesSingle Stage
CoolingAir Cooled
CertificationISO 9001:2015
Full catalogue → Document Library
//
Typical Applications
›Workshops & garages
›Spray painting
›Pneumatic tools
›Small manufacturing units
›Construction sites
›Agriculture
//
Single-Stage Reciprocating Compressor
| Model | HP | KW | Cylinders | PD (CFM) | LPM | PSIG | kg/cm² | Air Receiver (L) |
|---|---|---|---|---|---|---|---|---|
| KC 7S1 | 1 | 0.75 | 1 | 3.76 | 106 | 125 | 8.78 | 70 |
| KC 7S2 | 2 | 1.5 | 2 | 7.46 | 210 | 125 | 8.78 | 125 |
| KC 735 | 3 | 2.2 | 2 | 14.85 | 420 | 80 | 5.62 | 160 |
| KC 744 | 5 | 3.7 | 2 | 20.00 | 566 | 80 | 5.62 | 200 |
| KC 744 | 7.5 | 5.5 | 2 | 34.60 | 980 | 80 | 5.62 | 250 |
| KC 755 | 10 | 7.5 | 2 | 52.80 | 1495 | 80 | 5.62 | 300 |
| KC 715S | 20 | 15 | 3 | 148.50 | 4204 | 40 | 2.81 | 500 |
//
Related Products
Single Stage Rotary Screw Compressor
High-efficiency single-stage screw compressors available in VFD, fixed drive and high pressure variants.
Two Stage Rotary Screw Compressor
Two-stage screw compressors with VFD option for higher efficiency at elevated pressures.

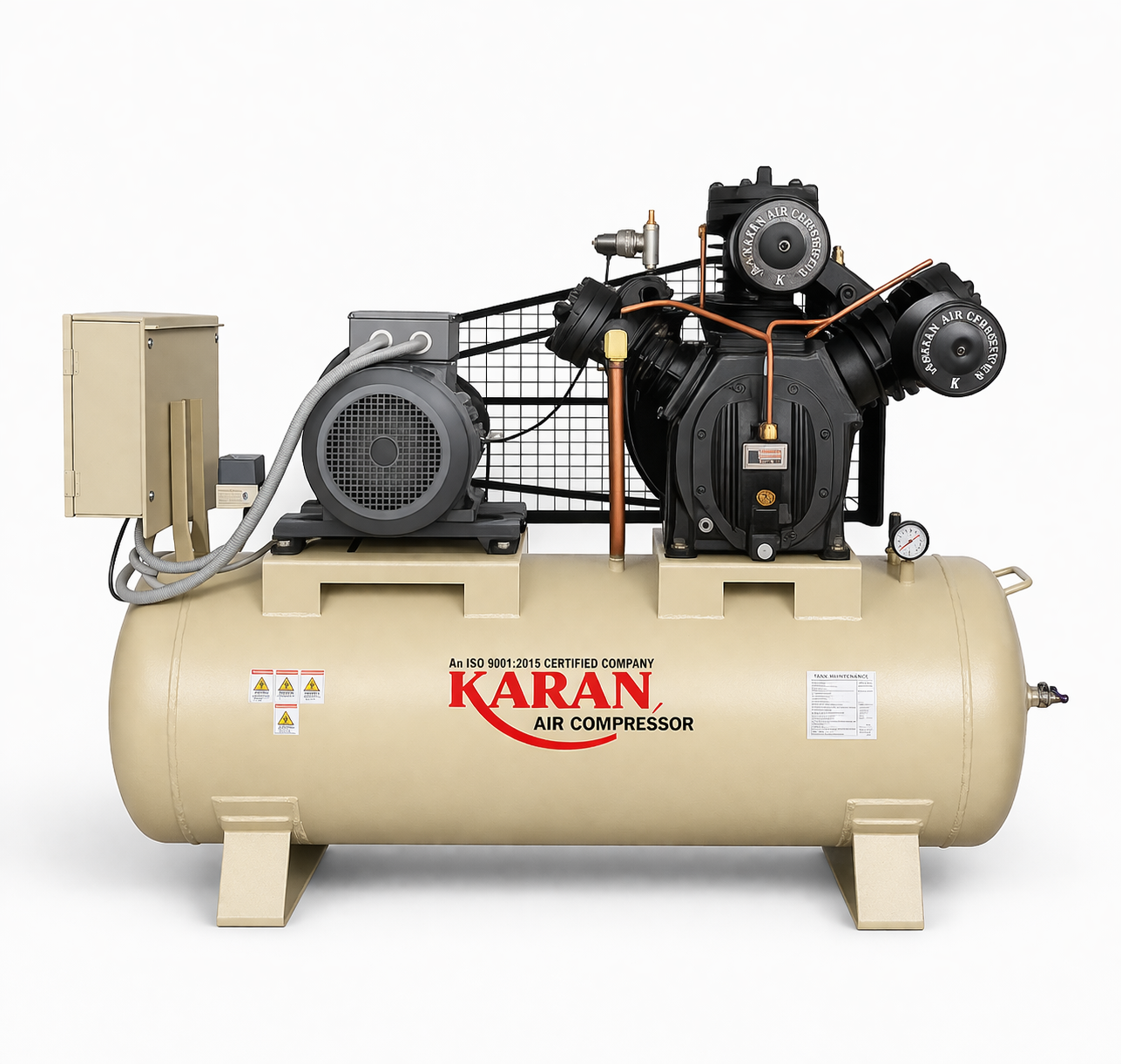

Two Stage Reciprocating Compressor
